Li-ion Pedestrian Pallet Truck 2.0t EP Innovation WPL202

About The WPL202

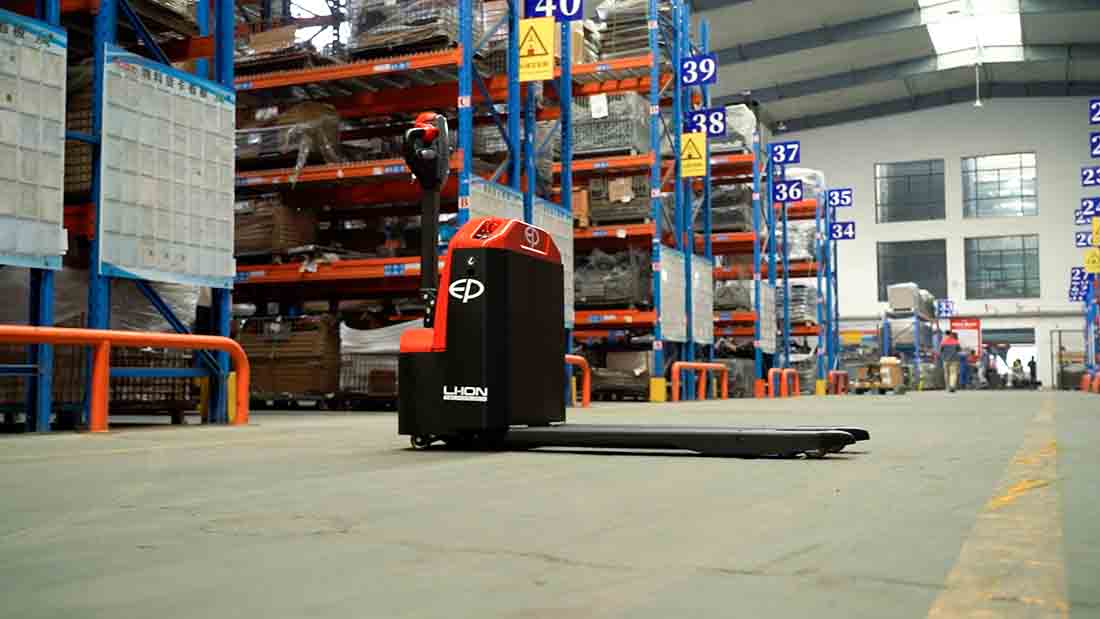

The WPL202 is a lithium powered pedestrian pallet truck with load capacity of 2.0 ton, ideal for goods transportation in confined and congested spaces. It demonstrates an ultra-slim design, with the chassis length 170mm shorter than EPT20-20WA, which brings better maneuverability and freight costs reduction. The WPL202 is equipped with 24V100Ah Li-ion battery and 24V30A integrated charger and effectively boost productivity due to opportunity charging. The upgraded castor wheels increase stability during walking on uneven roads and ramps. Additionally, it offers an option for customers who need to operate in refrigerated warehouses.

Application

The WPL202 excels with its short chassis length 470mm, which makes it a perfect truck-mounted tool for loading and unloading lorries for retail, beverage, food and logistics industries. The operator can also take advantages of this compact and maneuverable truck to transport pallets along narrow aisles in small to medium production bases or construction sites. Besides, the WPL202 is available for horizontal transportation in refrigerated warehouses as an option.

Media Gallery

Features

As the upgraded alternative of EPT20-20WA series, WPL202 demonstrates an ultra-slim design, which allows the operators to transport goods in narrow aisles or lorries at more ease. Besides, 2 units per box reduces 50% freight costs, compared to 1 unit of EPT20-20WA in one box.

Ultra-slim design for great maneuverability

The WPL202 features short chassis length 470mm and small turning radius 1320 mm, making it a agile helper in tight spaces and lorries. This compact truck accommodates 2 units in a box compared to 1 unit of the EPT20-20WA, that can reach as high as 50% of ocean freight charges reduction.

Lithium technology with integrated charger

The WPL202 comes with 24V/100Ah Li-ion battery and 24V/30A integrated charger as standard, which offers high availability to multi-shift works, thanks to fast and flexible charging and zero maintenance.

Upgraded castor wheel ensuring stability

The optimized castor wheels qualify the WPL202 for excellent stability and gradeability when handling materials on uneven surfaces and ramps.

Reliability enhanced by mature components

The WPL202 adopts market-proven components with reliability and durability enhanced greatly.

Available for usage in cold storage

As an option, the WPL202 can be applied to cover handling tasks in cold storage, providing versatility around users’ needs.

Resources

WPL202 Data sheet
Download

Our product portfolio

WPL202	EPT20-20WA
CAPACITY 2000KG	CAPACITY 2000KG
BATTERY CAPACITY 24V/100AH LI-ION	BATTERY CAPACITY 24V/205AH LI-ION
CHARGER 24V/30A INTEGRATED	CHARGER 24V/50A EXTERNAL
CASTOR WHEELS STANDARD	CASTOR WHEELS STANDARD
LENGTH TO FACE OF FORKS 470MM	LENGTH TO FACE OF FORKS 621MM
TURNING RADIUS 1320MM	TURNING RADIUS 1600MM
